Understanding GFCI Outlets: Function And Importance

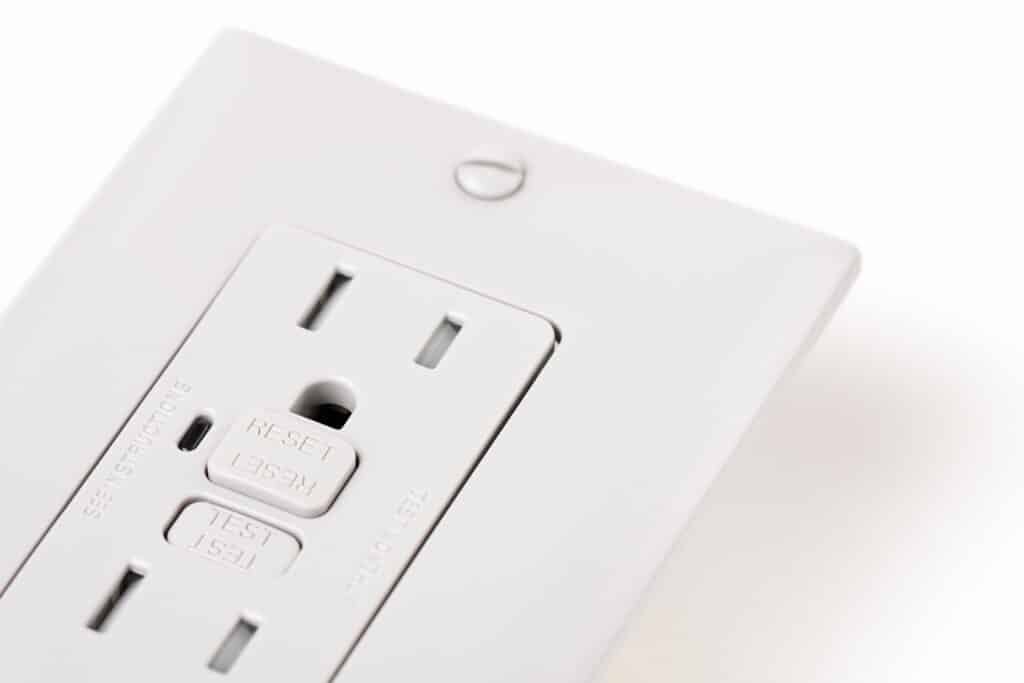

What is a GFCI Outlet?
How do GFCI outlets protect you from electrical shock?
Ground Fault Circuit Interrupter (GFCI) outlets are designed to protect individuals from electrical shock by monitoring the electrical current in a circuit.
When the GFCI detects an imbalance between the incoming and outgoing current, it interrupts the circuit, thereby preventing electric shock.
This quick response is crucial in preventing severe injuries or fatalities caused by electrical faults, particularly in areas where water is present, such as bathrooms, kitchens, and outdoor locations.
Importance of GFCI Outlets
GFCI outlets play a critical role in electrical safety, providing numerous benefits:
Preventing Electric Shock:
The primary function of GFCI outlets is to prevent electric shock.
By cutting off the electrical supply almost instantly when a fault is detected, they significantly reduce the risk of serious injury or death.
Reducing Fire Hazards:
Ground faults can also lead to electrical fires.
GFCI outlets help mitigate this risk by stopping the flow of electricity before it can cause overheating and ignite a fire.
Code Compliance:
In Wilmington, NC, and across the United States, the National Electrical Code (NEC) mandates the use of GFCI outlets in certain areas of homes and businesses.
Compliance with these regulations is essential for safety and legal reasons.
Installing GFCI outlets in required locations ensures your home meets current electrical safety standards and reduces liability risks.
Versatility:
GFCI outlets are not only crucial in new constructions but also beneficial in older homes.
While older homes may not be required to have GFCI outlets unless the wiring is being updated, retrofitting these outlets can greatly enhance electrical safety.
How to Install GFCI Outlets: A Step-by-Step Guide
Installing a GFCI outlet can be a straightforward DIY project if you follow the correct procedures and safety measures.
This guide provides a detailed step-by-step approach to installing a GFCI outlet in your home, ensuring you enhance electrical safety in crucial areas like bathrooms, kitchens, and outdoor spaces.
Tools and Materials Needed
Before starting the installation, gather the following tools and materials:
- Flat screwdriver
- Phillips screwdriver
- Flashlight
- Wire stripper
- GFCI outlet
- GFCI outlet cover
- Voltage tester
- Electrical tape
Step-by-Step Installation Process
- Turn Off the Power: Locate the circuit breaker that controls the outlet you are replacing and switch it off. Use a voltage tester to ensure the power is off by testing the existing outlet.
- Remove the Existing Outlet: Use a flat screwdriver to remove the outlet cover plate. Unscrew the screws holding the outlet in place and carefully pull it out of the wall box. Disconnect the wires by loosening the terminal screws.
- Prepare the Wires: Inspect the wires for any damage. Use a wire stripper to strip about ¾ inch of insulation from the ends of the wires if necessary. Ensure the wires are straight and in good condition to make secure connections.
- Identify Line and Load Wires: GFCI outlets have two sets of terminals: one labeled “Line” and the other “Load.” The “Line” terminals are for the wires that supply power from the breaker, while the “Load” terminals protect additional outlets downstream. Identify which wires are the line and which are the load by using the voltage tester before disconnecting the wires from the old outlet.
- Connect the Wires to the GFCI Outlet: Attach the black (hot) wire to the brass “Line” terminal screw and the white (neutral) wire to the silver “Line” terminal screw. If there are additional wires to connect to other outlets downstream, attach them to the corresponding “Load” terminals. Connect the ground wire to the green screw on the GFCI outlet.
- Secure the GFCI Outlet: Carefully fold the wires back into the wall box and secure the GFCI outlet with the mounting screws. Ensure the outlet is firmly in place and attach the outlet cover plate.
- Restore Power and Test: Turn the circuit breaker back on and test the GFCI outlet by pressing the “Test” button. The outlet should trip, cutting off power. Press the “Reset” button to restore power. If the GFCI outlet does not trip or reset correctly, recheck your wiring connections.
- Label the Outlet: Most GFCI outlets come with a sticker indicating they are GFCI protected. Place this sticker on the outlet cover to alert users that the outlet is protected.
Benefits of Installing GFCI Outlets
Fire Prevention
Electrical fires are a significant hazard in homes and businesses.
GFCI outlets help prevent such fires by interrupting the flow of electricity when a ground fault is detected.
Ground faults can cause overheating and potentially ignite flammable materials.
By cutting off the power quickly, GFCI outlets reduce the risk of fire, thus protecting both property and lives.
Code Compliance and Insurance Benefits
In Wilmington, NC, compliance with the National Electrical Code (NEC) is essential for ensuring safety and avoiding legal issues.
The NEC mandates the installation of GFCI outlets in specific areas prone to moisture, such as bathrooms, kitchens, and outdoor spaces.
Meeting these requirements not only ensures safety but can also have financial benefits.
Many insurance companies offer lower premiums for homes with up-to-date electrical systems that include GFCI outlets, as these installations are considered to reduce the risk of electrical hazards.
Protection of Appliances
While GFCI outlets are primarily installed for safety, they also offer protection for electrical appliances.
By preventing electrical surges and ground faults, GFCI outlets can prolong the life of your appliances by ensuring they do not receive erratic electrical currents.
This can result in fewer repairs and replacements, saving homeowners money in the long run.
Locations for GFCI Installation
Bathrooms
Bathrooms are high-risk areas for electrical hazards due to the presence of water.
The NEC requires GFCI outlets for all bathroom receptacles to ensure safety while using hair dryers, electric razors, and other appliances near water sources.
Kitchens
In kitchens, GFCI outlets are required for all countertop receptacles.
This is crucial as kitchen appliances like blenders, toasters, and coffee makers are often used near sinks and other water sources.
Installing GFCI outlets in kitchens helps prevent electrical shocks and fires.
Outdoor Areas
Outdoor electrical outlets are exposed to weather conditions, making them susceptible to moisture.
The NEC mandates GFCI outlets for all outdoor receptacles to protect against electrical shocks from tools, lighting, and other outdoor appliances.
Garages and Basements
Garages and unfinished basements often have high moisture levels and house power tools and other electrical equipment.
Installing GFCI outlets in these areas reduces the risk of electrical shock and fire, ensuring a safer environment.
Laundry and Utility Rooms
In laundry rooms, GFCI outlets are required within six feet of sinks, washing machines, and water heaters.
These areas are prone to water spills and leaks, making GFCI protection essential for preventing electrical accidents.
Installing GFCI outlets in these critical areas of your home not only ensures compliance with safety regulations but also provides comprehensive protection against electrical hazards.
Common Issues with GFCI Outlets and How to Troubleshoot Them
Understanding common problems and knowing how to troubleshoot them can help ensure your GFCI outlets function properly and continue to protect your home.
Common Issues
- GFCI Outlet Won’t Reset
- Cause: This can happen due to a tripped breaker, a ground fault, or an issue with the outlet itself.
- Solution: First, check the circuit breaker to ensure it hasn’t tripped. If the breaker is fine, unplug all devices from the outlet and press the reset button again. If the outlet still won’t reset, there may be a ground fault or the GFCI outlet might be faulty and need replacement.
- Frequent Tripping
- Cause: Frequent tripping can be caused by ground faults, moisture, or an overloaded circuit.
- Solution: Identify any potential sources of moisture and eliminate them. Ensure that the total load on the circuit does not exceed the outlet’s capacity. If the problem persists, there may be a ground fault in the wiring or a defective GFCI outlet.
- No Power to the Outlet
- Cause: A loss of power can occur if the GFCI outlet has tripped, a circuit breaker has tripped, or there is a wiring issue.
- Solution: Press the reset button on the GFCI outlet. If this doesn’t restore power, check the circuit breaker. If the breaker is not tripped, the issue may lie in the wiring, and it could be necessary to consult a licensed electrician.
- Buzzing or Humming Noise
- Cause: A buzzing or humming noise can indicate a loose connection, faulty wiring, or a defective outlet.
- Solution: Turn off the power to the outlet at the breaker panel and check for loose wires. If the wiring appears secure, the outlet itself may need to be replaced.
Troubleshooting Steps
Check for Tripped Breakers:
Always start by checking your home’s circuit breaker panel.
Reset any tripped breakers and see if this resolves the issue with the GFCI outlet.
Test the GFCI Outlet:
Use the built-in test button on the GFCI outlet.
Press the “Test” button; this should cut power to the outlet.
Press the “Reset” button to restore power.
If pressing the reset button doesn’t restore power, there might be a deeper issue.
Inspect for Moisture:
Check for any signs of moisture or water damage around the GFCI outlet.
Moisture can cause the outlet to trip frequently. If you find any, address the moisture source before resetting the outlet.
Check for Proper Wiring:
Ensure the outlet is wired correctly. Incorrect wiring can cause a GFCI outlet to malfunction.
If you’re unsure about the wiring, it’s best to contact a licensed electrician to inspect and correct it.
Replace the Outlet:
If troubleshooting steps don’t resolve the issue, the GFCI outlet may be faulty and need replacement.
Turn off the power at the breaker, remove the old outlet, and install a new GFCI outlet according to the manufacturer’s instructions.
When to Call a Professional
While some issues with GFCI outlets can be resolved with basic troubleshooting, certain problems require the expertise of a professional electrician.
If you encounter persistent issues, frequent tripping, or signs of electrical damage, it’s essential to consult a licensed electrician.
This ensures that any underlying electrical problems are safely and effectively addressed.
Maintenance and Testing of GFCI Outlets
Regular maintenance and testing of GFCI outlets are crucial to ensure they function correctly and provide the necessary protection against electrical shocks and faults.
Here’s a comprehensive guide on how to maintain and test your GFCI outlets effectively.
Monthly Testing Procedure
Locate the Test and Reset Buttons:
Every GFCI outlet has two buttons: “Test” and “Reset.”
These buttons are typically located on the front of the outlet and are used to verify the outlet’s functionality.
Press the Test Button:
Press the “Test” button to simulate a ground fault.
This action should immediately cut off power to the outlet.
If the outlet continues to supply power after pressing the “Test” button, it indicates a malfunction, and the outlet may need to be replaced.
Verify Power Loss:
Plug a small device, such as a nightlight or a lamp, into the GFCI outlet.
After pressing the “Test” button, the device should turn off, confirming that the outlet has successfully interrupted the power flow.
Press the Reset Button:
After testing, press the “Reset” button to restore power to the outlet.
The device plugged into the outlet should turn back on.
This step ensures that the GFCI outlet is functioning properly and can reset itself after detecting a fault.
Check Downstream Outlets:
If there are any outlets downstream (connected in series) from the GFCI outlet, repeat the testing process on these outlets.
This ensures that the GFCI outlet is protecting all outlets connected to it.
Troubleshooting GFCI Outlets
Non-Functioning Outlet: If the GFCI outlet does not respond to the test button or fails to reset, it may be defective and should be replaced.
Ensure that the replacement outlet is installed correctly by following the manufacturer’s instructions or hiring a professional electrician.
Frequent Tripping: If a GFCI outlet trips frequently, identify and eliminate potential sources of moisture or overload.
Persistent issues may indicate a problem with the wiring, requiring professional evaluation and repair.
Moisture Exposure: GFCI outlets in outdoor or moisture-prone areas should be checked regularly for water exposure.
Ensure that these outlets have weather-resistant covers and are adequately sealed to prevent moisture intrusion.
Professional Maintenance and Installation
While regular testing and basic maintenance can be performed by homeowners, certain situations warrant professional assistance.
In Wilmington, NC, Mister Sparky offers expert electrical services, including the installation, maintenance, and repair of GFCI outlets.
Professional electricians can ensure that your GFCI outlets are installed correctly, function properly, and comply with the latest safety codes.
Conclusion
GFCI outlets are a vital component of electrical safety in homes and businesses, particularly in areas prone to moisture.
Regular maintenance, testing, and proper installation are crucial to ensure they function correctly and provide the necessary protection against electrical hazards.
By understanding their importance and following proper maintenance procedures, homeowners in Wilmington, NC, can enhance their electrical safety significantly.
For professional installation and further assistance, consider contacting Mister Sparky of Wilmington, NC, to ensure your home’s electrical system is safe and up to code.
FAQs About GFCI Outlets
-
What is the main function of a GFCI outlet?
The primary function of a GFCI (Ground Fault Circuit Interrupter) outlet is to protect people from electrical shock by detecting ground faults. It monitors the current flowing through the circuit and shuts off the power if it detects any imbalance, indicating that the current is flowing along an unintended path, such as through water or a person.
-
Where should GFCI outlets be installed in a home?
According to the National Electrical Code (NEC), GFCI outlets should be installed in areas where electricity and water are in close proximity. This includes bathrooms, kitchens, outdoor spaces, garages, basements, laundry rooms, and utility rooms. These installations help prevent electrical shocks in moisture-prone areas.
-
How often should GFCI outlets be tested?
GFCI outlets should be tested monthly to ensure they are functioning correctly. This can be done by pressing the “Test” button on the outlet to ensure it trips and cuts off power and then pressing the “Reset” button to restore power. Regular testing helps ensure the outlet will work properly in the event of a ground fault.
-
What causes a GFCI outlet to trip?
GFCI outlets can trip for several reasons. One common cause is ground faults, which occur when electrical current flows along an unintended path, such as through water or a person. Overloaded circuits can also trigger a trip; this happens when too many devices are plugged into the same circuit, exceeding its capacity.
-
Can I install a GFCI outlet myself, or should I hire a professional?
While a knowledgeable DIYer can install a GFCI outlet, it is essential to understand electrical systems and local building codes. Incorrect installation can lead to safety hazards. For those unfamiliar with electrical work, or to ensure compliance with local codes, it is recommended to hire a licensed electrician. Professionals can guarantee safe installation and address any complex wiring issues.
